Wednesday 20 November 2013

The Making of "3 Billy Goats Gruff"

For my next project, following in the great traditions of animators like Ray Harryhausen, I decided to animate in stop motion a familiar folk tale. It should ideally need only one set, moderate action, a manageably small set of characters, and be narratable in about two or (at a pinch) three minutes. The Norwegian folk tale of the Three Billy Goats Gruff was one of my favourites, and seemed practical. This post is the story of how I made this:


I read some versions of the tale, and timed some narration. We don't seem to have trolls in Scotland, but we do have goats, and I wanted to get some video of them, to see how they moved, ate grass, butted each other and so on.

I phoned up Fife Animal Park to ask if they had any goats. Yes, they said. So on a cold March day I went by train and footpath, past swans swimming in icy lakes and along country roads, to the park, by which time it was snowing. It turned out that Fife Animal Park was a heaven for goats. Not only that, but while other animals were sheltering in their straw-filled dens, there were lots of goats running about, of various shapes/sizes/colours/ages, trying to cadge feed off hardy visitors. I took lots of useful reference video, which was particularly helpful as I couldn't easily find what I was looking for online (maybe I'll post some editing clips in future).

Photograph of white, horned goat.


The storyboarding was straightforward: one beginning panel, three panels (one for each) of the goat–troll encounters, and one ending panel.


My first attempt at the script departed from the traditional with some asides and scene-setting, but when I timed it, it took over four minutes to read. That's a lot of still frames. I went back to quite a cut-down, traditional reading, without the more quirky (by modern day) or poetic parts. This was a much more realistic 2 minutes and 20 or so seconds.


Narrating the shorter script was easier on my voice, too. I recorded it in five separate files (one per scene) in Garageband using the Male Narrator track preset, using a Yeti USB microphone with pop shield. I found that the best voice I could produce was a relaxed, subdued story-telling rhythm, although I had to create four other voices for the three goats and the troll. I suppose I must have made funny faces while recording those, but we'll never know.

I didn't really do any sound editing apart from trimming to edit out non-speech time. However, I probably should have adjusted the amplitude upwards at the start of Scene 2, where it begins a bit quietly.


There were a lot of different materials used in the making of sets, models and props. I sourced some locally, some online. I'll cover these in the following sections.


I read that a hot glue gun would be useful, and turned out to be particularly handy for covering large areas quickly, like sticking stones to board, or grass card to papery hills. And the usual: scissors, rule, needle, pliers, hobby vice, model holder with crocodile grips and magnifying glass, paintbrush, hammer, pencil, clamps.


Photograph of a hilly model set with stream being built on a workshop table.

Only one set was needed. I started with a 900 by 600 mm board. This was to have a stream running the length, so I needed to create two shores. The near shore (where the goats would start) was a plank of balsa wood covered with part of a card sheet of simulated grass, from my local hobbies shop. This was fixed loosely enough so that small steel plates (from a DIY store) could be slid underneath and moved about, to support the magnetic feet of the models.

Another photograph of a hilly model set with stream being built on a workshop table.

The farthest shore was made from scrunched newspaper hilly clumps, covered with Modrock plaster of paris bandages, in turn covered with the rest of the simulated grass sheet of card, glued down with a hot glue gun. A clump of three plastic trees on the horizon added a sense of scale and perspective.

The stream was made up of a blue painted bed, lined with white aquarium stones and sand (lightly glued), and a filled with a layer of around 3 mm of special water feature liquid, which took a more than a day to fully set. This gave a nice reflective, transparent surface.


For the three goats and the troll, I started with to-scale pencil sketches. These were sized to fit reasonably within the dimensions of the set. Then I created basic armatures with 3.2 mm aluminium wire spines, hand-twisted 1 mm aluminium wire limbs, with the loops at one end forming hooves/hands/feet, to which I glued small (3 mm diameter, 2 mm thick) round neodymium magnets.

Photograph of wireframe goat models sitting on steel plates.

The legs were attached to the spine with joints made of Milliput polymer clay (mix two kinds together, mould, and it sets in hours). The set clay was a little softer than I expected, but it held up quite well.

Photograph of three goat models with foam bodies and clay heads.

The goat bodies were padded out with strips of foam cut from the innards of an old seat cushion, glued on with epoxy glue. The heads were made from baked Sculpey clay, with holes for eyes and horns, and the bottom jaws cut off and baked separately. The horns were made of twisted wire like the legs, covered with clay and baked. The looped ends fitted into the skulls. White beads were painted (badly; I was trying to get the distinctive elongated black pupil on yellow, but the watercolour paint rubbed off) for eyes, which were set in the sockets using modelling wax, which held them while allowing for movement. The hooves were more Milliput, which covered the magnets, but it did tend to crumble during walking. I probably needed to seal it with some hard lacquer or something.

Photograph of three headless, felt-coated goat models on a green-hilled set.

The goat bodies were covered with acrylic felt (in cream, tan and brown for different goats), roughly cut to measure and stuck on with latex glue which retains flexibility, plus some stitching on legs. The acrylic felt turned out to be a great material to work with: nicely textured, malleable and trimmable, and importantly did not retain finger indentations or move about on its own when animating. The bottom edge of the coats were snipped to give a look halfway between a hairy pelt and a buckskin coat.

Photograph of three finished goat models on grassy set.

The heads were stuck on the spines and painted (again, wrong kind of paint which rubbed off), and ears, manes, beards and eyebrows (most important for expression) stuck on. The jaws were attached at the back of the mouth with a tiny blob of modelling wax.

Photograph of wireframe troll in front of troll sketch.

The troll was made in much the same way, but I was stumped for a while about the head. In the end, I used a pattern to cut out six felt sinusoidal strips, sew them together and stuff the resulting ball with cotton wool. This was light enough to balance on the squat, long-armed body. Magnets were used in both feet and hands, which had wire claws added for extra menace. Offcuts from the felt head panels were folded at the base to provide ears and nose, the nose strengthened with wire.

Photograph of unfinished troll model on bridge of set.

The troll's head had to be detachable in order for it to fit under the bridge. A rubber washer was added to the bottom of the head to make it fit better on top of the 3.2 mm aluminium wire neck extending the top of the spine. I was pleased how the troll could balance on top of the bridge.

The bridge itself was steel plates sitting on baked clay reinforced with aluminium wire uprights, covered with strips cut from a wicker-type basket to resemble wooden planks.

Photograph of finished troll model standing on bridge in green, hilly set.

I dyed some cotton wool light grey with a very diluted black ink and used it for troll hair, eyebrows, wispy beard and on hands and feet. The troll's eyes and mouth were cut from another type of fuzzier felt. Different mouth shapes were used for replacements. This turned out to be quite successful in animating, although the features did fall off quite often, being only held on by natural fuzziness. The troll's body was clothed in a fourth (russet) shade of brown from my excellent-value acrylic felt pack. The troll should match its "eyes like saucers, nose like a poker" description.


Three bendable, clampable LED lights were used for key, fill and backlighting. The blue, textured card used for background turned out to be quite dark for sky, but it did not seem to matter that much. Perhaps the slightly different light directions for each goat suggested a different time of day, but my main concern was to light the models and set adequately.


This time, I set the colour temperature manually, which gave a slightly more natural look to the grass (less yellowy). I wish I had gone full manual from the start; there were all sorts of auto-focussing problems in the first scene.


Boinx iStopmotion 2 Home version was used for putting together the animation from the digital camera. Garageband was used for audio, and iMovie for the final edit.


Measurement and timing

The animation rate was 12 frames per second, and the movie size set to 960 by 540 pixels (large widescreen).

Scene 1

Storyboard scene 1: goats looking at hill across stream.

The first scene simply introduces the three goats in a family group, looking across the stream to a grassy hillside. Lighter-coloured powdered 'grass' is dropped a pinch per frame to create a kind of increasing glow. I should have fixed the manual focus here. The scene ends on a pan along the stream and a short zoom in on the bridge, as the goats plan their route over the obstacle.

Scene 2

Storyboard scene 2: first goat crosses troll bridge.

The second scene follows the littlest billy goat Gruff as he makes his way to and on to the bridge. We have a bit of a stiff walk cycle here. The magnetic hooves are gripping the undersurface steel plates well, but the wire legs are a little inflexible and I suspect the goat has a dislocated hip.

The troll (just a head to begin with) makes his appearance. His body language is intended to show a possessive, affectionate relationship with his bridge.

All shots were done in sequence except the reverse views of goats on the bridge ramp. These were all done as a group, actually picking up and reversing the ramp after the other bridge shots were done, so the set and camera remain in the same positions.

The littlest billy goat gradually slides back down the ramp (which wasn't strictly intentional, but seemed to work), darting a look towards his brothers.

Scene 3

Storyboard scene 3: second goat crosses troll bridge.

The third scene shortens the walk to the bridge for the middle billy goat Gruff. His wiry body is flexible and stable enough to lean one way then another, looking for the troll. The troll indulges in an impressive display of eye-rolling, which is quite easy to do with the felt. The troll's mouth is made from two pale lips, one crimson centre of two or three shapes, and two small triangular teeth, all of fuzzy felt. The lip synching is roughly gauged, but fairly effective, I think.

The timing of the goat's eye-brow and ear raising to coincide with the word "much" is entirely intentional, and helps to convey the goat's opportunistic character.

Scene 4

Storyboard scene 4: third goat crosses troll bridge.

For the fourth scene, I used some new camera angles. The steady progression from small, quaking goat to large, steadfast goat is an essential part of the story, and can be suggested by many aspects of narration, modelling, animation, shot-framing, timing and so on. The other essential aspect is that, in spite of all these signs, the troll does not catch on… until too late!

I did have the shameful thought of making the troll animation of appearing and getting on to the bridge the same sequence (well, that would save animation time and effort, would it not?), but I quickly realized that I should do the opposite, and make these distinctively different. What is the psychology of the troll? Is he helping to fool himself? Is he getting increasingly desperate for a meal?

The troll is despatched, but presumably intact and a bit wiser, and no longer poses a threat to the goats' plans.

Scene 5

Storyboard scene 5: goats eat grass on hill on far side.

The final scene sees the goats enjoying the spoils. Some extra stuffing in the first two goats suggests that they've already been eating the green felt grass. As in the introduction, movement is limited and rationed, usually only one goat at a time.


The animation sequences were exported from iStopMotion, and the audio segments from Garageband, and combined in iMovie for video editing. Titles and a short animation (Sleeping Dog) ident were added.


Captions were created by marking up the script in Timed Text Markup Language.


The final video was published to YouTube, and the captions file uploaded. A slightly higher quality version is kept for DVD distribution.

Wednesday 13 November 2013

The making of "William Shakespeare's 7 ages of man"

For my first real animation project, I looked for some existing, well-known, public domain/out-of-copyright narrative with a strong visual interpretation that I could adapt. This would let me concentrate on the animation techniques, and allow viewers to judge the results against relatively familiar criteria. It would have a duration of between 1 and 2 minutes, and be suitable for animating in modelling clay (plasticine).

I chose a reading from William Shakespeare's play As You Like It, Act II Scene VII, Jaques: "All the world's a stage...", and started the process that would eventually result in:


I read a couple of books, including Cracking Animation: The Aardman Book of 3-D Animation, and watched some of the Morph videos. I listened to a couple of readings of the speech on YouTube.


I sketched nine storyboard panels, which were referred to, and annotated, throughout the production.


I worked mostly from the text, rather than try to emulate any real Shakespearean actors. I recorded a full speech three or four times before I got a sound that seemed acceptable, concise and clear. I used my Yeti microphone with pop shield and Apple Garageband, which has presets for narrative-style audio (like a podcast, I guess).


Mainly plasticine was used, from My Own Morph, and some additional pots. Also, Original Sculpey clay, aluminium wire and mesh, plywood, wood, beads and cloth. One tip I followed was to use baby wipes to keep hands clean when handling (and smoothing) the plasticine. A lot of tape and other sticky stuff was used. A textured sheet of dark blue paper was used as a background.


A set of modelling tools for clay was used, along with various woodworking and wirecutting tools.

Models and props

The main character was based on Morph, and adapted for each life stage. A skateboard from My Own Morph was used. The rest of the props were created specifically.


There were two sets, one a theatre stage with curtains, the other a simple floor. The base for both was a 900 by 600 mm (3 by 2 foot) board, painted white. The texture of these was not as good as a smooth surface for sticking plasticine to, however.

The theatre set was largely made of plywood. The most complex piece, basically an actor in its own right, was the pair of curtains. Not having anything suitable to cut up, I bought the red material from a local store which had a furnishing department. However, when hung, the material was too smooth and flat, so I taped an aluminium wire mesh background to each curtain and shaped it in folds.

Photograph of theatre set with smooth red curtain.
Photograph of back of theatre set, showing aluminium wire mesh backing on red curtain to create folds.
Photograph of animation studio workshop: workbench, laptop desk with microphone, camera on tripod, theatre set on shooting trestle table.


Three bendy, clampable LED lights were used for backlight, fill and key.


A Canon EOS 1100D digital single lens reflex camera was used, although I should have turned it to full manual, as there were autofocussing and colour temperature issues.


Boinx iStopmotion 2 home edition for Mac was used to pull the digital still images into an animated form. This worked quite well (tip: make sure that no other software is trying to open up when your camera connects, this kind of contention can stop iStopmotion's capture working), although I should maybe have broken down the scenes into separate files, to make rendering and processing quicker.


Measurement and timing

The animation was timed at 12 frames per second. For some scenes, a steel rule was used to keep movement consistent (millimetres per frame). A movie size of 960 by 540 pixels (large widescreen) was chosen, which should be fine for most current devices.

Prologue part 1

Storyboard: 0s, drawing of curtains.

Zoom into curtains, which are moved (the aluminium wire mesh deformed) about as if someone behind was fumbling for an opening.

Prologue part 2

Storyboard: 7s, Morph as Hamlet between opening curtains.

First model instability problem as Morph-like actor wants to nosedive. Try to put at least one (mild) visual gag in each scene, making the skull have some character.

Scene I

Storyboard: 14s, Act 1, infant in nurse's arms.

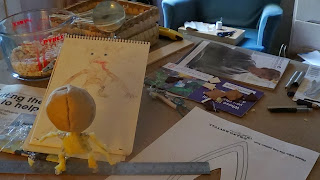

I almost ran out of plasticine for the nurse, whose arms and chest were layered over a wire frame. Clear and white beads were useful for snot, tears and less identifiable bits in the projectile vomit which is created by replacement of different white plasticine shapes.

Scene II

Storyboard: 18.5s, Act 2, schoolboy and snail.

Another instability problem. The schoolboy had a hollow satchel, thin plasticine over wire mesh, and large feet, but still had a tendency to nose-dive. But this time, when the figure fell on his nose, I decided to make a virtue of it by morphing him into a snail, which turned out to be quite easy with repeated small pressings and mouldings, and certainly a strong point of modelling clay.

Scene III

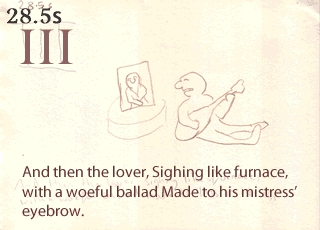

Storyboard: 28.5s, Act 3, youth with guitar and portrait of maiden.

A model of the mistress (morphlike maiden) is photographed, printed and put in plasticine frame. The versatile wooden bench (eight legs, all different lengths) makes its first appearance.

Scene IV

Storyboard: 36.5s, Act 4, soldier staring down cannon.

More plasticine is brought in for cannon and hat feather. Subtle things like the cannon's lighting flame may be too subtle. Cotton wool for smoke and wire used for sword and feather spine.

Scene V

Storyboard: 50s, Act 5, justice sits on bench.

Maybe a seated model will not fall over? Here comes the bench again. Although justice's arms threatened to fall off. The "severe" eyes achieved by slicing off the top of the ovals. I couldn't find a way of working in the capon, which is implied (inside).

Scene VI

Storyboard: 64.5s, Act 6, old spectacled man in slippers.

This lengthy scene was a bit of a challenge, with not a lot of action in the text, but I think it turned out alright, and is my favourite scene. The sword becomes a walking stick, the inevitable plunge groundwards (halted by the trusty bench) worked in as sign of infirmity.

Scene VII

Storyboard: 89.5 to 108s, Act 7, dying old man surrounded by memorabilia.

The final scene shows some of the accumulated objects from the character's life as he lies on his deathbed (the pillow is fired Sculpey clay).

Reversing the original zoom, the camera moves out as the curtain closes and the lights are turned off, one by one, leaving us in the darkened theatre where we started.


The animation was exported from iStopMotion, and the audio from Garageband, and combined in iMovie for video editing. Titles and a short animation (Sleeping Dog) ident were added. The synchronization of speech with action worked surprisingly well (for example in Scene VI).


Captions were created by marking up the existing text in Timed Text Markup Language.


The final video was published to YouTube, and the captions file uploaded. A slightly higher quality version is kept for DVD distribution.

Wednesday 6 November 2013

Getting set for stop-motion animation

After some encouragement from litter-mates, 2013 was designated "Year of Animation".

A workshop/animation studio was carved out somewhere between the library and the beer cellar of the Beagle's Lair, after bulldozing out the accumulations of years of missed spring-cleaning opportunities.

Some budget-conscious selections from Ikea furnished and equipped the studio with:

  • a trestle table for supporting the sets during shooting, as well as providing some workspace;
  • three bendy, clampable LED lights;
  • a laptop table;
  • a comfortable wheeled, swivel armchair (bearing in mind one is sitting for long periods during this kind of animation, and switching from computer to camera to set).

I already had:

  • a laptop computer;
  • a copy of Boinx iStopMotion 2 (Home edition) software;
  • a camera tripod;

For the workshop area, where sets and models would be built, I got a Draper steel workbench from Amazon. Oh, if it were only that simple: the tale of having to pick it up from an industrial estate depot, wheel it to the bus stop, wait for a bus with appropriate access, get it back to the Lair, assemble/disassemble/reassemble it correctly with a rubber mallet; that is a tale of fortitude and triumph and backpain that will not be dwelt upon. However, it is a very nice workbench, with two drawers that I started filling with various tools and glues.

I also got a couple of matching storage containers for all the smaller resources, from nails and screws to thread and wax and beads and so forth that were to play their parts.

After consulting with a photographer friend, I decided to get an entry-level digital single-lens-reflex camera, a Canon EOS 1100D, to be used for the main still photography. I also got a Sony Handycam CX190 for video work and other snaps, which was useful for some research.

For recording audio, particularly narration, I went for a Blue Microphones Yeti USB microphone, and I later got a pop filter (Sleeping Dog's spittle and speech impediments need all the disguising they can get). The audio is recorded in Apple's GarageBand software.

Here is the basic layout plan:
